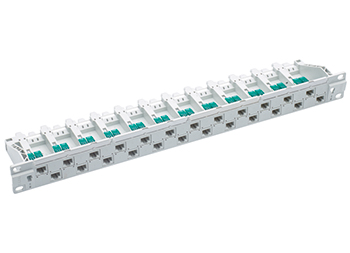

R&M, Patch panel PC 24xRJ45/u, Cat.5E, LSOH, 1U
| Kód: | R812471 |
- 19" 1U 24-port kovový patch panel
- 24x propojovací modul Cat. 5e, nestíněný
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
Standardy
- EN 50173-1: May 2011
- IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets
- ISO/IEC 11801 ed. 2.2: June 2011
Obsah balení:
- 19" 1U 24-port patch panel, prázdný, nestíněný
- 24 Cat. 6 propojovacích modulů, RJ45 nestíněné včetně protiprachových záslepek
- 19" montážní sada
- 4 vyvazovací oka
- Stahovací pásky
- Instalační manuál
KÓD: R812471
Technická specifikace
| R&M, Patch panely osazené | |
| Třída ochrany IP | IP 20 |
| PoE | Ano |
| Stínění konektorů | Nestíněný |
| Typ konektorů | RJ45 |
| Kategorie konektorů | Cat. 5e |
| Počet konektorů | 24 |
| Držák pro konektor / modul | Speciální (bez montážní desky) |
| Rack montážní verze | sub-rack |
| Osazení | plně osazen |
| Šířka (palec) ["] | 19 |
| Kapacita (portů) | 24 |
| Výška jednotky (U) [U] | 1 |
| Výška | 43.65 mm |
| Šířka | 482.6 mm |
| Hloubka | 98.4 mm |
| Barva | S 5202-B |
Ke stažení
Originální text
19" 1U PC Patch Panel 24xRJ45/u, Cat. 5e, gray, fully populated
Scope of supply
- 19" 1U 24-port patch panel, empty, unshielded
- 24 Cat. 6 connection modules, RJ45/u incl. dust covers
- 19" mounting kit
- 4 labeling strips
- Cable ties
- Installation instructions
Standards
- EN 50173-1: May 2011
- IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets
- ISO/IEC 11801 ed. 2.2: June 2011
General Data
| Description [Unit] | Value/Value range |
|---|---|
| Fastening (inch) ["] | 19 |
| Height units (U) [U] | 1 |
| Rack mounting version | sub-rack |
| Capacity (ports) | 24 |
| Number of connectors (A) | 24 |
| Connector type (A) | RJ45 |
| Category connector (A) | Cat. 5e |
| Shielding connector (A) | No |
| Protection class IP (A) | IP 20 |
| Holder for connector / module | Special (without mounting plate) |
| Color Code NCS | S 2502-B |
| Color | medium gray |
| Assembly | fully populated |
| Dimensions | 43.65 x 482.6 x 98.4 mm |
| Material | plastic: PC, fiber-glass reinforced |
Modular patch panel with integrated cable tie shelf, 19" fastening kit, labeling fields with exchangeable labeling strips, prepared for optional two patch cord rings. The ports are prepared for a visual color coding system. Panel polycarbonate, fiber-glass-reinforced, halogen-free material, UL 94 listed. Color medium gray, NCS 2502-B.
24 ports populated with
RJ45 connection module of Category 5, for the setting up of transmission channels of class D with up to 4 plugged connections, complies with Category 5 requirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1, May 2011 (DIN EN 50173-1) as well as TIA 568-C, de-embedded tested in acc. with IEC 60603-7-2, interoperable and backwards compatible with Category 5e (2000) and Category 5 (1995).
Suitable for 1GBASE-T applications in acc. with IEEE 802.3™ Section Three over 100 m.
Tested in line with R&M's manufacturing control.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 24 – 22 (0.5 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 (as of production date 07461). Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. With integral cable strain relief, including dust cover.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 5e, with EMC cover, dust cover, cable tie and installation instructions.
