Kód: | R304373 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Standardy
Obsah balení:
KÓD: R304373
R&M, Moduly | |
Třída ochrany IP | IP 20 |
PoE | Ano |
Třída konektoru | Connection Module |
Stínění | Stíněný |
Typ konektoru | RJ45 |
Kategorie | Real10 Cat. 6 |
Držák pro konektor / modul | Snap-In rámeček |
Schéma zapojení | TIA-568A / TIA-568B |
Póly | 8 |
Výška | 18.2 mm |
Šířka | 22.8 mm |
Hloubka | 41.6 mm |
Barva | modul modrý / Snap-In adaptér šedý (NCS 2502-B) |
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Connector class | connection module |
Connector type (A) | RJ45 |
Category connector (A) | Real10 Cat. 6 |
Shielding connector (A) | Yes |
Holder for connector / module | Snap-in |
Color | module, blue / Snap-in adapter, gray (NCS 2502-B) |
Wiring diagram | TIA-568A / TIA-568B |
Poles | 8 |
Dimensions | 18.2 x 22.8 x 41.6 mm |
Material | plastic: PC, UL 94 V-0 |
RJ45 connection module of Category 6, for the establishing of transmission channels of class E and class EA with up to 4 plugged connections, and class F on 2 pairs, complies with Category 6 requirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1, May 2011 (DIN EN 50173-1) as well as TIA 568-C, de-embedded tested in acc. with IEC 60603-7-5, interoperable and backwards compatible with Category 5e and Category 5.
Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection, plus permanent quality assurance through the "GHMT PREMIUM Verification Program" including certificate and test report acc. to DIN-EN ISO/IEC 17025, in German language.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 24 – 22 (0.5 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 2 contact fingers for flat connectors 4.8 x 0.5 mm.
Mounting dimensions 14.9 x 19.5 mm, max. material thickness 1.6 mm.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

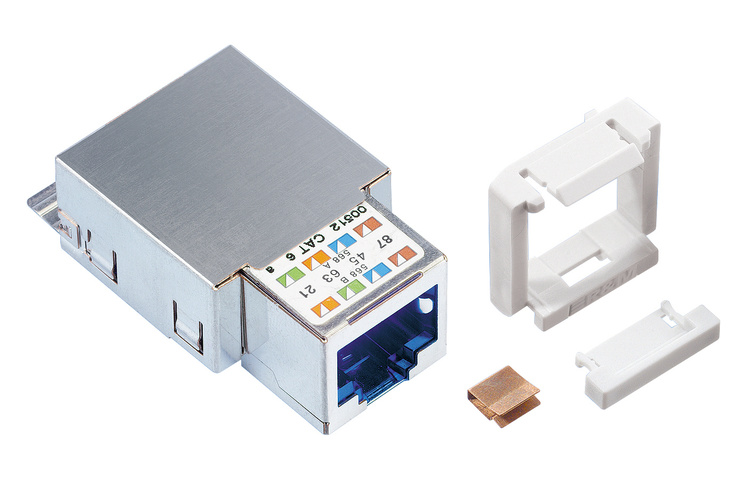

Connection module Cat. 6, shielded, with EMC cover, dust cover, snap-in frame (gray), cable tie and installation instructions.
