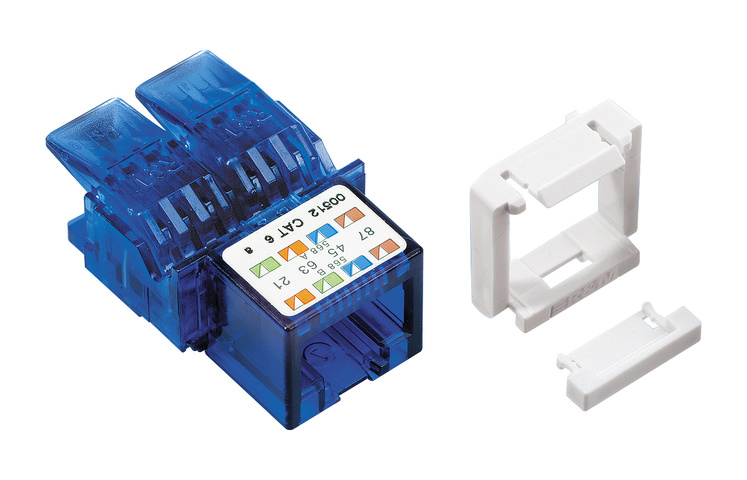

R&M, UTP propojovací modul 1xRJ45/u, Cat.6 Snap-In

Kód: R304374
  • R&M propojovací modul Cat. 6, nestíněný
  • maximální spolehlivost díky speciální kontaktní konstrukce bez vnitřních přestupních bodů
Cena: dostupná po přihlášení
Dostupnost: Brno

Praha

u vás: do 2 pracovních dní
Množství:  ks
  • R&M propojovací modul Cat. 6
  • maximální spolehlivost díky speciální kontaktní konstrukce bez vnitřních přestupních bodů



Standardy

  • UL Listed
  • EN 50173-1: May 2011
  • IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets
  • ISO/IEC 11801 ed. 2.2: June 2011



Obsah balení:

  • RJ45 Cat. 6 propojovací modul, nestíněný
  • Snap-in adaptér
  • Prachová krytka
  • Kabelová svorka
  • Instalační manuál



KÓD: R304374

Technická specifikace

R&M, Moduly
Třída ochrany IP IP 20
PoE Ano
Třída konektoru Connection module
Stínění Nestíněný
Typ konektoru RJ45
Kategorie Cat. 6
Držák pro konektor / modul Snap-In rámeček
Schéma zapojení TIA-568A / TIA-568B
Póly 8
Výška 18.2 mm
Šířka 22.7 mm
Hloubka 41.3 mm
Barva modul modrý / Snap-In adaptér šedý (NCS 2502-B)

Originální text

Connection Module Cat. 6, 1xRJ45/u, Snap-in

Scope of supply

  • RJ45 Cat. 6 connection module, unshielded
  • Snap-in adapter
  • Dust cover
  • Cable tie
  • Installation instructions
  • As part of a Real10 Cat. 6 channel, the Real10 connection module exceeds the minimum requirements of the IEEE 802.3™ Section Four standard on 10GBASE-T performance, as well as the requirements for Class EA performance acc. to ISO/IEC 11801 ed. 2.2, June 2011 and Cat. 6A performance according to TIA 568-C.2
  • Exceeds Cat.6 specifications acc. to ISO/IEC 11801, EN 50173 and TIA 568-C in the entire admissible range
  • Maximum reliability through special contact design without internal transfer points
  • Capacitive and inductive compensation
  • Delta, GHMT and 3P certified



Standardy

  • UL Listed
  • EN 50173-1: May 2011
  • IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets
  • ISO/IEC 11801 ed. 2.2: June 2011



General Data

Description [Unit] Value/Value range
Connector class connection module
Connector type (A) RJ45
Category connector (A) Cat. 6
Shielding connector (A) No
Holder for connector / module Snap-in
Color module, blue / Snap-in adapter, gray (NCS 2502-B)
Wiring diagram TIA-568A / TIA-568B
Poles 8
Dimensions 18.2 x 22.7 x 41.3 mm
Material plastic: PC, UL 94 V-0



RJ45 connection module of Category 6, for the establishing of transmission channels of class E with up to 4 plugged connections, complies with Category 6 requirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1, May 2011 (DIN EN 50173-1) as well as TIA 568-C, de-embedded tested in acc. with IEC 60603-7-4, interoperable and backwards compatible with Cat. 5e and Cat. 5.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 55 m.

Tested in line with R&M's manufacturing control, performing 100% inspection.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 24 – 22 (0.5 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. With integral cable strain relief, including dust cover.

Mounting dimensions 14.9 x 19.5 mm, max. material thickness 1.6 mm.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6, unshielded, with dust cover, snap-in frame (gray), cable tie and installation instructions.
