Kód: | R306257 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | cívka 500 m |
|
Standardy
KÓD: R306257
R&M, Instalační kabely | |
Třída ochrany IP | IP 20 |
PoE | Ano |
Kabelová třída | Instalační kabel |
Kategorie | Cat. 7A |
Stínění kabelu | S/FTP |
Plášť kabelu | LSFRZH |
Třída reakce na oheň | Dca |
Charakteristika pláště | bezhalogenový, plamen retardující |
Ochrana kabelu | bez ochrany |
Celkový průměr | Ø 7.5 - 8.3 mm |
Průměr vodiče | AWG 22 |
Počet vláken | 8 |
Stočení | 4 páry |
Typ vodiče | drát |
Max. testovací frekvence [MHz] | 1200 MHz |
Barva | 7035 světlá šedá |
Délka kabelu [m] | 500 m |

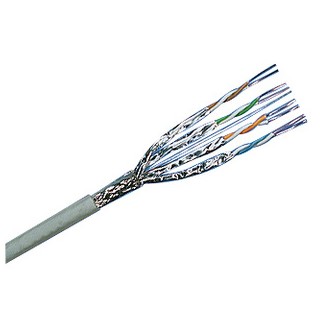

Cost-effective Cat. 7A, S/FTP cable. Foil shielding of pairs and overall tin-plated copper braid shield. 100 Ohm impedance. Data transmission frequency of up to 1200 MHz.
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Cable class | installation cable |
Max. test frequency [MHz] | 1200 |
Cable shielding | S/FTP |
Number of wires | 8 |
Stranding | 4 pairs |
Cable jacket material | LSFRZH |
Cable protection | No protection |
Cable overall diameter | Ø 7.5 - 8.3 mm |
Conductor diameter | AWG 22 |
Color Code RAL | 7035 Light gray |
Cable length [m] |
500 |
Pair-shielded 100 Ohm installation cable with overall braided screen, suitable for transmission frequencies of up to 1200 MHz, 4 x 2 (AWG22). Compliant with standards ISO/IEC 11801 ed. 2.2, EN 50173-1: May 2011 (DIN EN 50173-1), IEC 61156-7, EN 50288-4-1, 10GBASE-T in acc. with IEEE 802.3™ Section Four, tested and certified by independent laboratory. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-3 and halogen-free in acc. with IEC 60754-2. Outer jacket color gray, RAL 7035.
