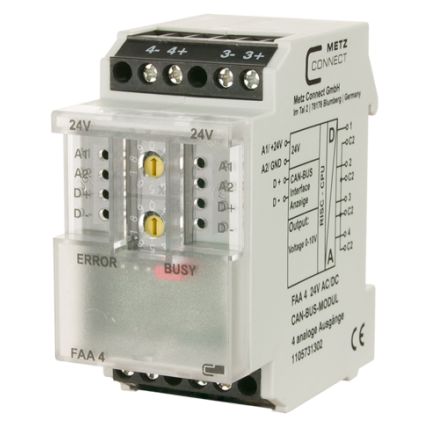

Metz, FAA 4 CAN
| Kód: | 1105731302 |
- CAN module with 4 analog outputs
- It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc.
- The fieldbus module is an output module for universal use
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- CAN module with 4 analog outputs
- It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc.
- The fieldbus module is an output module for universal use
- It is controlled by means of the CAN bus
- The module is addressed by means of an adjustable address, and the output states are transmitted in data bytes
- If there is an analog input module with the same address in the system, the voltage measured there is issued at the respective output
Technická specifikace
| Protocol | CAN |
| Addressing range | 00 to 99 |
| Bus interface ©CiA standard | 2.0B passive (two-wire bus) |
| Transmission rate | 20 to 500 kBit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 90 mA (AC) / 32 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Outputs | 4 x analog |
| Output / voltage | 0 V to 10 V DC |
| Output / current | 5 mA at 10 V DC |
| Output / resolution | 10 mV / digit |
| Output / switching voltage | +/- 1% |
| Display | Green and red LED |

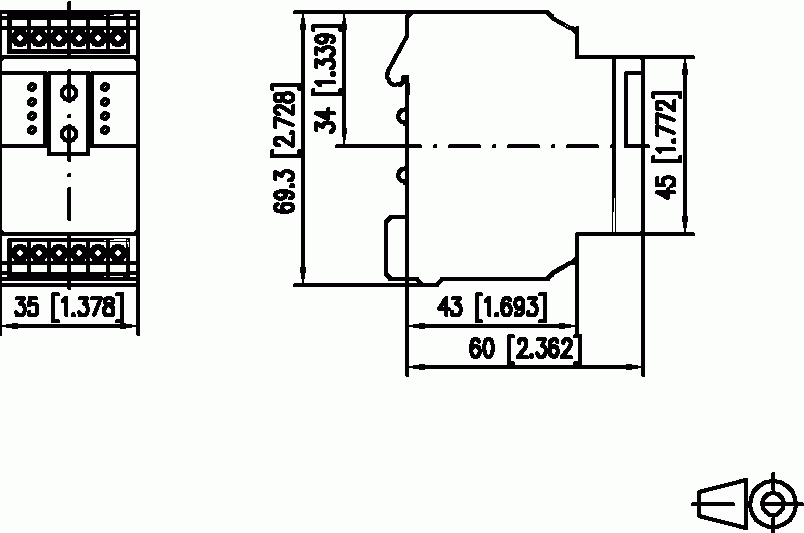

| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 84 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
