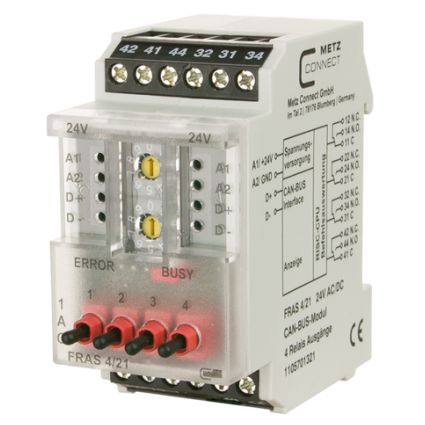

Metz, FRAS 4/21 CAN

Kód:	1105701321

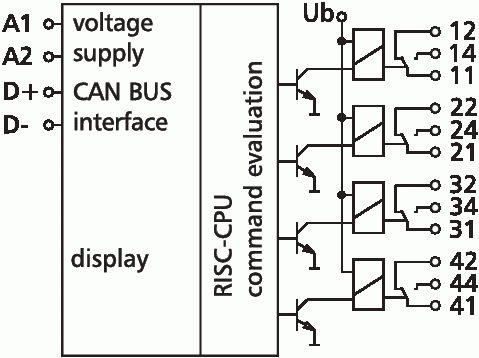

CAN module with 4 digital outputs
It is suitable for switching electrical components, for example motors, contactors, lamps, louvers, etc.
With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element

CAN module with 4 digital outputs
It is suitable for switching electrical components, for example motors, contactors, lamps, louvers, etc.
With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element
The fieldbus module is an input module for universal use
It is controlled by means of the CAN bus
The module is addressed by means of an adjustable address
Data bytes transmit whether data are queried or commands are executed
If there is a digital input module with the same address in the system, the module can be operated by remote control

Protocol	CAN
Addressing range	00 to 99
Bus interface ©CiA standard	2.0B passive (two-wire bus)
Transmission rate	20 to 500 kBit/s
Operating voltage	24 V AC/DC ± 10% (SELV)
Current consumption	205 mA (AC) / 67 mA (DC)
Relative duty cycle	100 %
Recovery time	550 ms
Output / contacts	4 x changeover contacts (4 DPST)
Output / switching voltage	250 V AC
Output / continuous current	5 A / output
Output / total current	max. 12 A / all outputs
Display	Green, red and yellow LED

Dimensions (W x H x D)	35 x 69.3 x 60 mm
Weight	104 g
Operating temperature range	-5 °C to +55 °C
Storage temperature range	-20 °C to +70 °C
Ingress protection for housing / terminal block	IP40 / IP20
