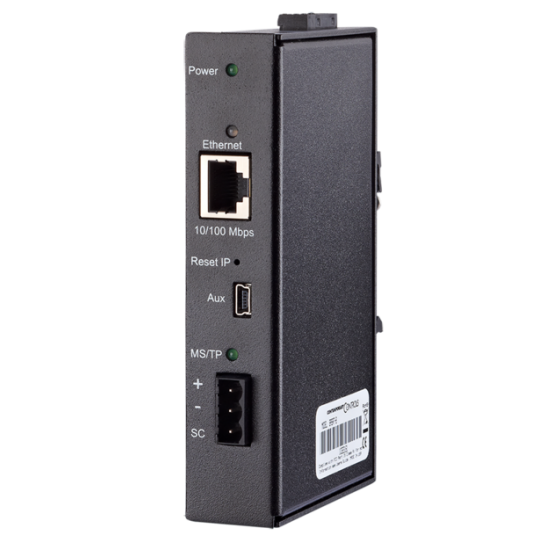

Metz, BACnet IP BACnet MSTP Router
| Kód: | 11080001 |
- The BACnet IP / BACnet MS/TP Router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP - thereby allowing the system integrator to mix BACnet network technologies within a single BACnet internetwork
- One 10/100 Mbps Ethernet port and an MS/TP port are used as communication interface to the respective BACnet networks
- An integrated web server allows the configuration, status monitoring, and troubleshooting
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The BACnet IP / BACnet MS/TP Router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP - thereby allowing the system integrator to mix BACnet network technologies within a single BACnet internetwork
- One 10/100 Mbps Ethernet port and an MS/TP port are used as communication interface to the respective BACnet networks
- An integrated web server allows the configuration, status monitoring, and troubleshooting
Technická specifikace
| Operating voltage | 24 V AC/DC +/- 10 % |
| Power consumption | 4 VA (AC) or 2 W (DC) |
| Ethernet communications | IEEE 802.3, 10/100 Mbps, |
| 10BASE-T, 100BASE-TX | |
| MS/TP communications | ANSI/ASHRAE 135, |
| ISO16484-5, EIA/TIA 485 | |
| 9600, 19200, 38400 and | |
| 76800 Bd | |
| Display | |
| Power | LED, green |
| Ethernet | 100 Mbps = LED, green |
| 10 Mbps = LED, yellow | |
| Activity = LED, flashing | |
| MS/TP | Activity = LED, green flashing |
| Mounting | TH35 acc. IEC60715 |
| Weight | 220g |
| Operating temperature range | 0 °C to +60 °C |
| Storage temperature range | -40 °C to +85 °C |
| Relative humidity | 10 to 95%, non condensing |
| Ingress protection | IP30 |
