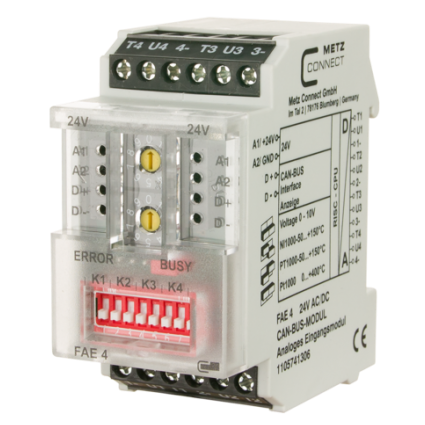

Metz, FAE 4 CAN

Kód:	1105741306

CAN module with 4 temperature and 4 voltage inputs
It is suitable for recording temperatures with Ni1000 or PT1000 sensors and voltages of, for example, electrical vent and mixing valves, valve positions, etc.
The fieldbus module is an input module for universal use

CAN module with 4 temperature and 4 voltage inputs
It is suitable for recording temperatures with Ni1000 or PT1000 sensors and voltages of, for example, electrical vent and mixing valves, valve positions, etc.
The fieldbus module is an input module for universal use
It is controlled by means of the CAN bus
The module is addressed by means of an adjustable address, and the input states are transmitted in data bytes
If there is one (or more) analog output module(s) with the same address in the system, the voltage measured there is issued at the respective output
Each input can be adjusted either from 0 to 10 V DC, to Ni1000 (-50 °C to +150 °C), PT1000 (-50 °C to +150 °C) or PT1000 (0 °C to +400 °C) by means of a DIP switch

Protocol	CAN
Addressing range	00 to 99
Bus interface ©CiA standard	2.0B passive (two-wire bus)
Transmission rate	20 to 500 kBit/s
Operating voltage	24 V AC/DC ± 10% (SELV)
Current consumption	67 mA (AC) / 24 mA (DC)
Relative duty cycle	100 %
Recovery time	550 ms
Inputs	4 x analog
Input / voltage	0 V to 10 V DC
Input / resolution	10 mV / (0 % to 100%)
Input / error	approx. +/- 20 mV
Input / temperature range	Ni1000, -50 to +150 °C
Input / temperature range	PT1000, -50 to +150 °C
Input / temperature range	PT1000, 0 to +400 °C
Display	Green and red LED

Dimensions (W x H x D)	35 x 69.3 x 60 mm
Weight	84 g
Operating temperature range	-5 °C to +55 °C
Storage temperature range	-20 °C to +70 °C
Ingress protection for housing / terminal block	IP40 / IP20
