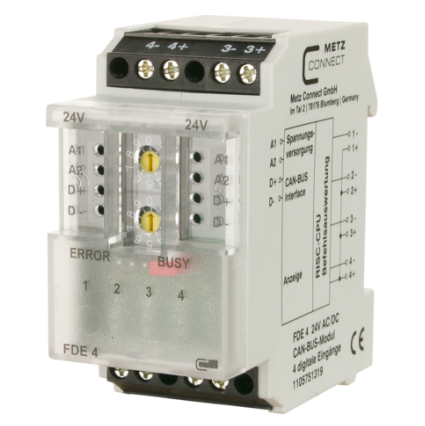

Metz, FDE 4 CAN
| Kód: | 1105751319 |
- CAN module with 4 digital inputs, which can be operated as contact or voltage inputs
- It is suitable for detecting switch states, for example, of electrical limit switches on vent valves or auxiliary contacts of power contactors
- The fieldbus module is an input module for universal use
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- CAN module with 4 digital inputs, which can be operated as contact or voltage inputs
- It is suitable for detecting switch states, for example, of electrical limit switches on vent valves or auxiliary contacts of power contactors
- The fieldbus module is an input module for universal use
- It is controlled by means of the CAN bus
- The module is addressed by means of an adjustable address, and the input states are transmitted in data bytes
- If there is one (or more) relay output module(s) with the same address in the system, the respective outputs are switched
Technická specifikace
| Protocol | CAN |
| Addressing range | 00 to 99 |
| Bus interface ©CiA standard | 2.0B passive (two-wire bus) |
| Transmission rate | 20 to 500 kBit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 63 mA (AC) / 21 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Inputs | 4 x digital |
| Input / high signal | less than 7 V DC |
| Display | Green, red and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 83 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
