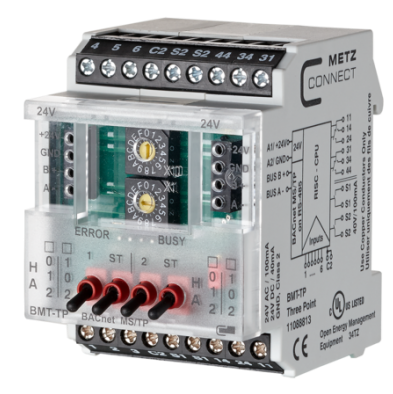

Metz, BMT-TP BACnet MS/TP
| Kód: | 11088813 |
- The BACnet MS/TP three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks
- It is suitable for switching, for example, multi-level pumps and fans or louvers
- With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The BACnet MS/TP three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks
- It is suitable for switching, for example, multi-level pumps and fans or louvers
- With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element
- The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client

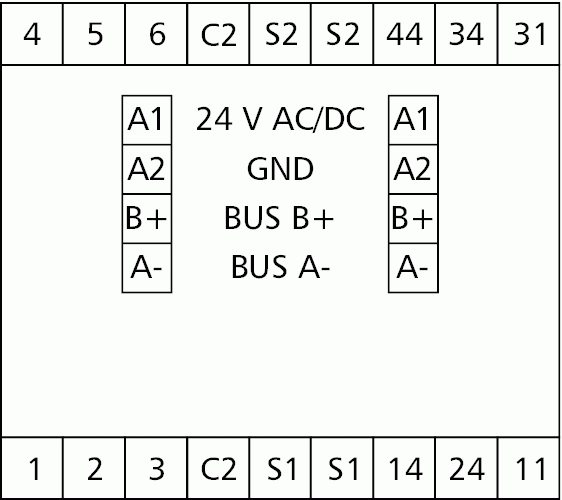

- The input terminals 1 to 6 are wired with the C2 terminals on two poles to potential-free switches or contacts
- The module has a manual control for the outputs
- The module address and the baud rate are set by means of two address switches on the front
- Suitable for decentralized mounting in serial sub-distributor
Technická specifikace
| Protocol | BACnet MS/TP |
| Addressing range | 00 to F9 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 9600 to 115200 baud |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 100 mA (AC) / 40 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs | 6 x digital contacts |
| Input / switching threshold | 4.5 V DC |
| Outputs (relay) | 2 x two-level |
| Output / switching voltage | 250 V AC |
| Output / current | 6 A / output |
| Outputs (digital) | 2 NO (DPST-NO) (photoMOS) |
| Output / switching voltage | 40 V AC/DC |
| Output / current | 100 mA |
| Display | Green, red and yellow LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 126 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
