Metz, BMT-DIO4/2-IP65 BACnet MS/TP
| Kód: | 1108831326IP |
- The BACnet MS/TP module in IP65 housing with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks
- It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers
- It can also be used to control 2 motorized fire dampers
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The BACnet MS/TP module in IP65 housing with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks
- It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers
- It can also be used to control 2 motorized fire dampers
- With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element
- The inputs can be used as contact or voltage inputs
- The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client
- The module address and the baud rate are set by means of two address switches
Technická specifikace
| Protocol | BACnet MS/TP |
| Addressing range | 00 to F9 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 9600 to 115200 baud |
| Operating voltage | 24 V AC/DC ± 10 % (SELV) |
| Current consumption | 200 mA (AC) / 75 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs | 4 x digital |
| Input / voltage | 0 - 24 V AC/DC |
| Input / high signal | more than 7 V AC/DC |
| Output / contacts | 2 changeover contacts (DPDT) |
| Output / switching voltage | 250 V AC |
| Output / continuous current (UL) | 8 A / output |
| Output / continuous current (VDE) | 10 A / output |
| Output / switch-on current | 80 A (less than 20 ms) |
| Display | Green, red and yellow LED |

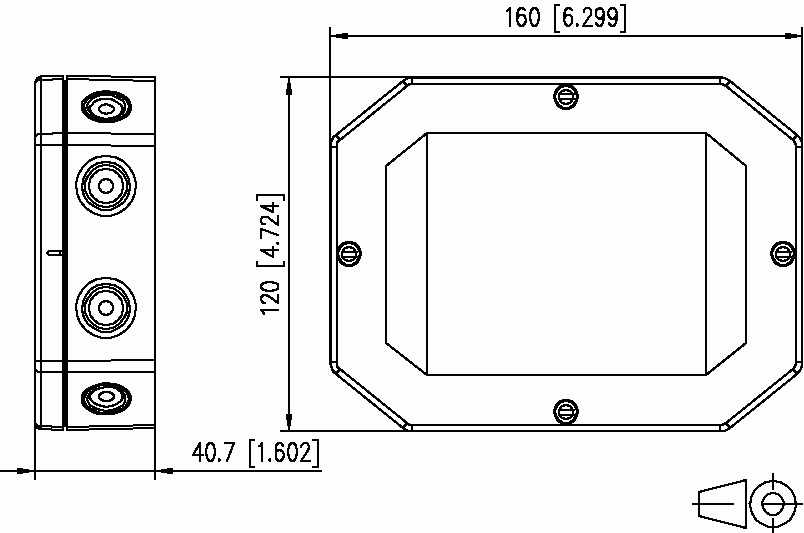

| Dimensions (W x H x D) | 160 x 40.7 x 120 mm |
| Weight | 350 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP65 / IP20 |
