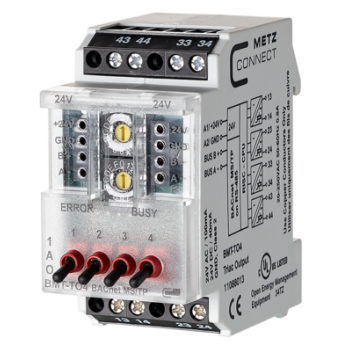

Metz, BMT-TO4 BACnet MS/TP

Kód:

11088013

The BACnet MS/TP module with 4 digital triac outputs was developed for decentralized switching tasks
It is suitable for switching electrical components, such as relays, contactors, HLK valves, etc.
The outputs can be switched by means of standard objects via a BACnet client

The BACnet MS/TP module with 4 digital triac outputs was developed for decentralized switching tasks
It is suitable for switching electrical components, such as relays, contactors, HLK valves, etc.
The outputs can be switched by means of standard objects via a BACnet client
In addition, the outputs can be overridden manually by means of switches on the device
The module is addressed and the baud rate is set by means of two address switches on the front
Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets

Protocol	BACnet MS/TP
Addressing range	00 to F9
Bus interface	RS485 (two-wire bus)
Transmission rate	9600 to 115200 baud
Operating voltage	24 V AC/DC ± 10 % (SELV)
Current consumption	100 mA (AC) / 40 mA (DC)
Relative duty cycle	100 %
Output / contacts	4 digital outputs (triac)
Output / switching voltage	24 V AC up to max. 250 V AC
Output / continuous current	0.5 A / output
Output / switching current	0.8 A (less than 30 s)
Output / switch-on current	10 A (less than 20 ms)
Display	Green, red and yellow LED

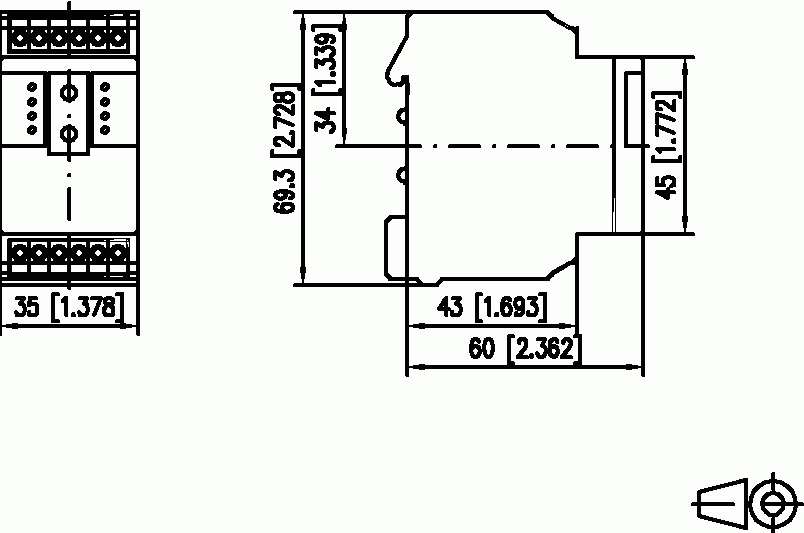

Dimensions (W x H x D)	35 x 69.3 x 60 mm
Weight	95 g
Operating temperature range	-5 °C to +55 °C
Storage temperature range	-20 °C to +70 °C
Ingress protection for housing / terminal blocks	IP40 / IP20
