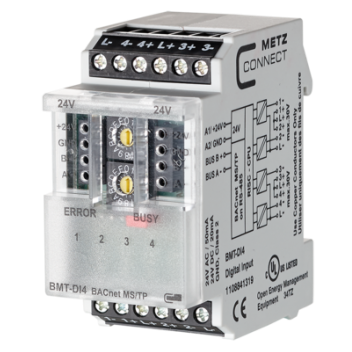

Metz, BMT-DI4 BACnet MS/TP
| Kód: | 1108841319 |
- The BACnet MS/TP module with 4 digital inputs was developed for decentralized switching tasks
- It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors
- The inputs can be operated by means of potential-free switches or contacts or used as voltage inputs
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The BACnet MS/TP module with 4 digital inputs was developed for decentralized switching tasks
- It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors
- The inputs can be operated by means of potential-free switches or contacts or used as voltage inputs
- The inputs can be scanned by means of standard objects via a BACnet client
- The module is addressed and the baud rate is set by means of two address switches on the front
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
Technická specifikace
| Protocol | BACnet MS/TP |
| Addressing range | 00 to F9 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 9600 to 115200 baud |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 50 mA (AC) / 20 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs | 4 x digital |
| Input / voltage | 30 V DC |
| Input / high signal | more than 7 V AC/DC |
| Display | Green, red and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 95 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
