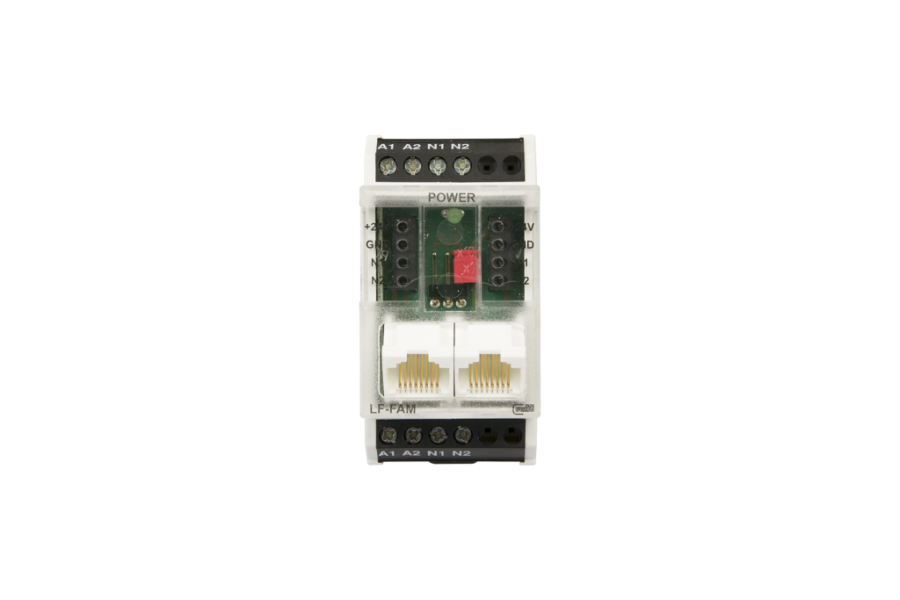

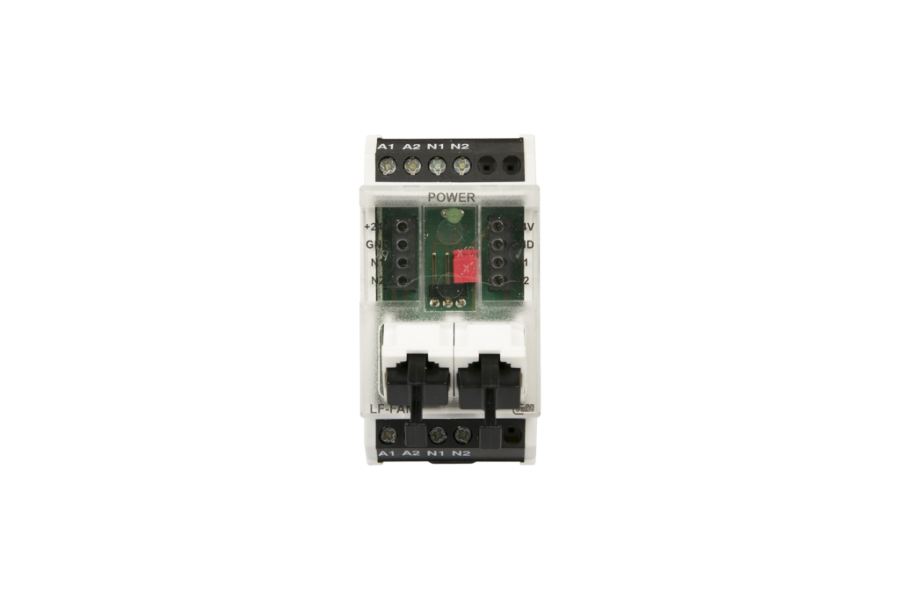

Metz, LF-FAM LON
| Kód: | 11087913 |
- Switch-on module for bus connection, supply voltage and adjustable bus termination
- The switch-on module was developed as wiring help for supplying the supply voltage and a two-wire bus to the LON bus modules
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Switch-on module for bus connection, supply voltage and adjustable bus termination
- The switch-on module was developed as wiring help for supplying the supply voltage and a two-wire bus to the LON bus modules
- The supply voltage and the two-wire bus are led to the upper part of the housing over a sturdy terminal block with a cross section of max. 2.5 mm² and connected to the modules by means of the jumper
- Using a suitable interface cable, the two-wire bus can be connected to a PC over the two RJ45 jacks
- A bus terminating resistor of 52.3 Ohm (R/2) for free network topology and 105 Ohm (R) for line topology can be set by means of the jumper under the removable cover
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
Technická specifikace
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | less than 5 mA |
| Switch-on duration | relative 100 % |
| Display | Green LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 75 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
