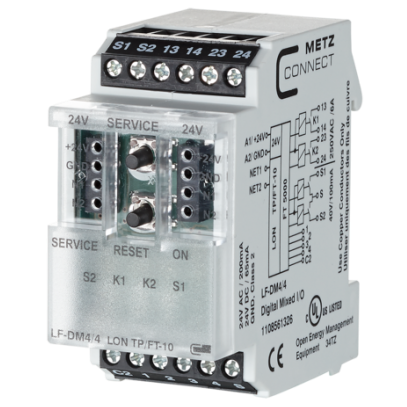

Metz, LF-DM4/4 LON

Kód:	1108561326

The LON I/O module with 4 digital inputs, 2 relay outputs and 2 digital outputs was developed for decentralized switching tasks
It is suitable for querying, for example, switching states and, as a result, switching motors or other actuators
With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element

The LON I/O module with 4 digital inputs, 2 relay outputs and 2 digital outputs was developed for decentralized switching tasks
It is suitable for querying, for example, switching states and, as a result, switching motors or other actuators
With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element
The inputs and outputs are scanned and activated by SNVT network variables
The input terminals 1 to 4 are wired with the C2 terminals on two poles to potential-free switches or contacts
In addition, a wipe function is integrated
Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets

Protocol	TP/FT-10, free topology
Neuron	FT5000
Transmission rate	78 KBit/s
Operating voltage	24 V AC/DC ± 10% (SELV)
Current consumption	200 mA (AC) / 65 mA (DC)
Relative duty cycle	100 %
Recovery time	550 ms
Inputs	4 x digital contacts
Input / switching threshold	4.5 V DC
Outputs (relay)	2 NO (DPST-NO)
Output / switching voltage	250 V AC
Output / current	6 A / output
Outputs (digital)	2 NO (DPST-NO) (photoMOS)
Output / switching voltage	40 V AC/DC
Output / current	100 mA
Operation and bus display	Green and yellow LED

Dimensions (W x H x D)	35 x 69.3 x 60 mm
Weight	90 g
Operating temperature range	-5 °C to +55 °C
Storage temperature range	-20 °C to +70 °C
Ingress protection for housing / terminal blocks	IP40 / IP20
