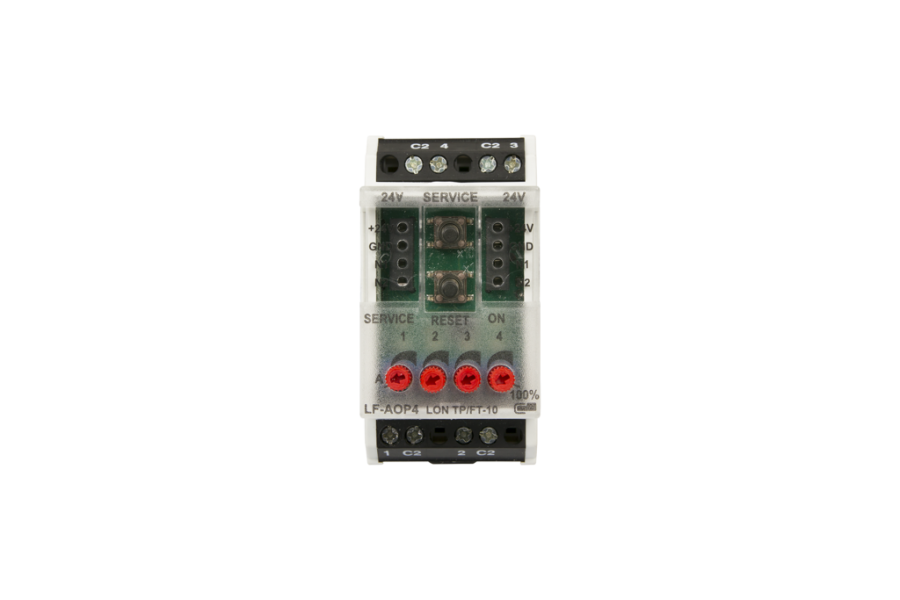

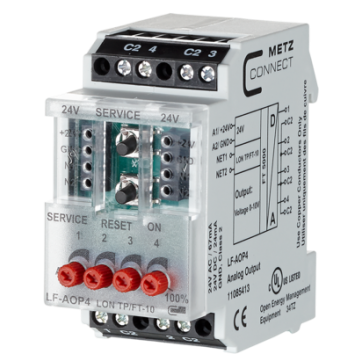

Metz, LF-AOP4 LON
| Kód: | 11085413 |
- The LON module with 4 analog outputs was developed for decentralized switching tasks
- It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc.
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The LON module with 4 analog outputs was developed for decentralized switching tasks
- It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc.
- The analog outputs can be activated proportionally by SNVT network variables, or previously defined voltage values can be adjusted
- Each output can be set for automatic or manual operation by means of 4 potentiometers at the front
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
Technická specifikace
| Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 100 mA (AC) / 40 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Outputs | 4 x analog |
| Output / voltage | 0 V to 10 V DC |
| Output / current | 5 mA at 10 V DC |
| Output / resolution | 0.625 mV / digit |
| Output / error | 100 mV |
| Display | Green and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 84 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
