Metz, LF-DO4-IP65 LON

Kód:	1108521321IP

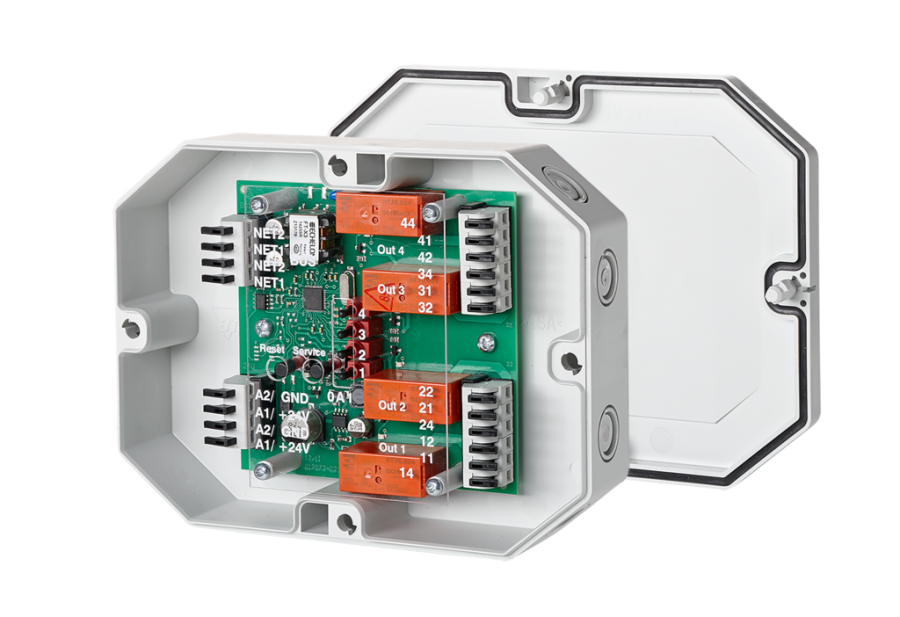

The LON module in an IP65 housing with 4 digital outputs was developed for decentralized switching tasks
It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc.

The LON module in an IP65 housing with 4 digital outputs was developed for decentralized switching tasks
It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc.
With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element
The outputs can be actuated by SNVT network variables
The module has a manual control activated only in configured mode
In addition, an adjustable wipe function is integrated

Protocol	TP/FT-10, free topology
Neuron	FT5000
Transmission rate	78 KBit/s
Operating voltage	24 V AC/DC ± 10% (SELV)
Current consumption	205 mA (AC) / 67 mA (DC)
Relative duty cycle	100 %
Recovery time	550 ms

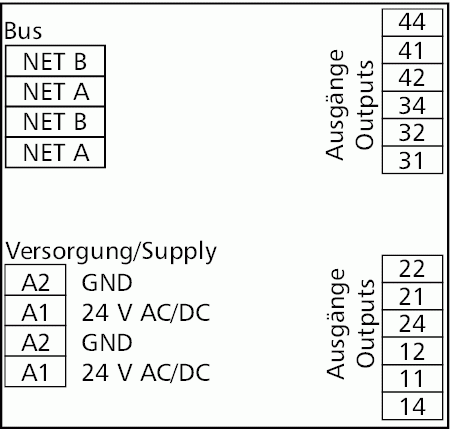

Outputs	4 changeover contacts (4PST)
Output / switching voltage	max. 250 V AC
Output / switch-on, switch-off current	80 A, 20 ms
Output / continuous current	10 A / output
Output / total current	max. 25 A / all outputs
Output / switching frequency	360 cycles/h
Display	Green and yellow LED

Dimensions (W x H x D)	160 x 40.7 x 120 mm
Weight	368 g
Operating temperature range	-5 °C to +55 °C
Storage temperature range	-20 °C to +70 °C
Ingress protection for housing / terminal blocks	IP65 / IP20
