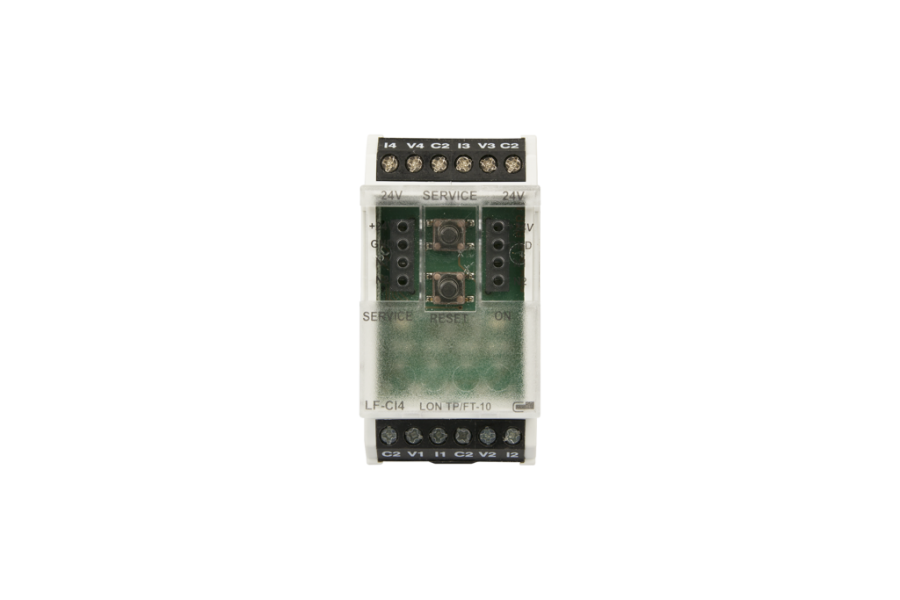

Metz, LF-CI4 LON
| Kód: | 1108601332 |
- The LON module with analog inputs was developed for decentralized switching tasks
- It is suitable for detecting 4 currents and 4 voltages of, for example, active temperature sensors, electrical vent and mixing valves, valve positions, etc.
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The LON module with analog inputs was developed for decentralized switching tasks
- It is suitable for detecting 4 currents and 4 voltages of, for example, active temperature sensors, electrical vent and mixing valves, valve positions, etc.
- The inputs can be scanned by SNVT network variables
- Suitable for decentralized mounting on TH35 rails according to IEC 60715 in electrical distribution cabinets
Technická specifikace

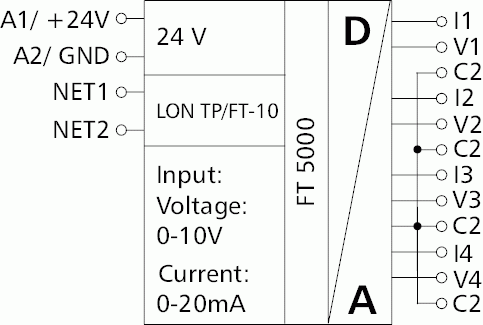

| Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 67 mA (AC) / 24 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Inputs | 4 x voltage, 4 x current |
| Input / voltage | 0 V to 10 V DC |
| Input / resolution | 10 mV (0 to 100 %) |
| Input / resistance | 10 kOhm |
| Input / current | 0 V to 20 mA DC |
| Input / resolution | 0.05 mA |
| Input / error | 1 % |
| Display | Green and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 84 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
